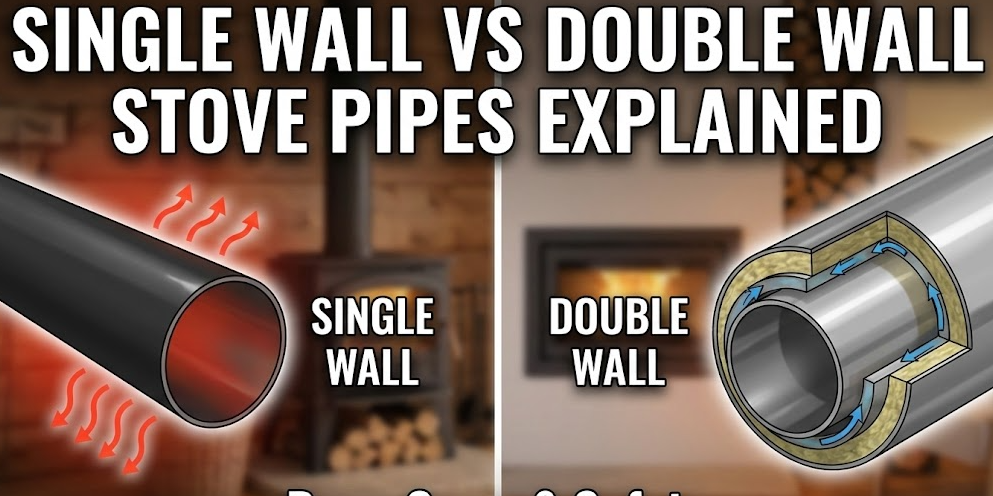

Single Wall vs Double Wall Stove Pipes Explained
Installing a wood stove involves more than just placing the unit in a room. One of the most important components is the stove pipe, which connects the stove to the chimney. Choosing between single wall and double wall stove pipes directly affects performance, safety, and compliance. Without understanding their differences, it is easy to make costly or dangerous mistakes. The right stove pipe depends on your space, heating goals, and clearance needs.
What Is a Single Wall Stove Pipe?
A single wall stove pipe is made from one layer of carbon steel, usually 22- to 24-gauge. It is designed to vent smoke and gases from the stove to the chimney system. Because it has no insulation, it gets very hot during use and radiates significant heat into the room.
Single wall pipes are most effective in open spaces where additional radiant heat is desirable. However, they require greater clearance from combustible materials due to high surface temperatures. Manufacturers typically specify at least 18 inches of clearance to walls, furniture, or ceilings.
These pipes are available in standard diameters like 6 or 8 inches and in various lengths and angles for custom routing. Joints must be properly secured with screws. They cannot pass through walls, ceilings, or attics without being connected to a Class A chimney pipe.
What Is a Double Wall Stove Pipe?
A double wall stove pipe has two layers: an inner stainless steel or carbon steel pipe and an outer steel layer, separated by an insulating air gap. This design helps retain flue gas temperatures while reducing the outer surface temperature.
Double wall pipes improve draft efficiency and lower the clearance requirement from combustibles, often to just 6 inches. This makes them suitable for tight spaces or installations close to walls.
They are more durable and maintain stable internal temperatures during operation. This supports efficient stove operation and cleaner burns. They are required in some jurisdictions and preferred for safety in residential spaces.
Key Structural Differences Between Single and Double Wall Pipes
The primary difference is the number of layers: single wall pipes have one, double wall pipes have two with an insulating air gap. This affects heat retention and external temperature.
Double wall pipes are heavier, more durable, and often have locking seams. Single wall pipes are lighter and easier to install but less resilient over time.
Other distinctions include:
- Double wall pipes often feature powder-coated finishes
- Connection methods differ (screws vs snap-lock systems)
- Double wall systems include specialized parts like telescoping sections
Heat Retention and Draft Performance Comparison
Double wall stove pipes retain more heat within the flue, supporting better draft and reducing creosote formation. Consistent flue temperatures improve combustion and make stoves easier to maintain.
Single wall pipes lose more heat into the room, which reduces flue temperature and increases condensation risk. This can lead to creosote buildup and draft issues.
In colder climates or long vertical installations, double wall systems perform better and maintain proper airflow. This ensures cleaner burns and more efficient heating.
Clearance Requirements and Fire Safety Differences
Single wall pipes require 18 inches of clearance from combustible materials due to high surface temperatures. Double wall pipes reduce this to 6 inches, allowing safer installation in tight or finished spaces.
Improper clearance increases the risk of fire. Always follow manufacturer specifications and local building codes to ensure safety.
For residential installations, especially in rooms with limited space, double wall pipes offer greater fire safety margins. They are strongly recommended even when not explicitly required.
Installation Flexibility and Space Constraints
Double wall pipes offer greater flexibility in compact spaces due to their reduced clearance requirements. This allows placement near walls or within built-in enclosures.
Single wall pipes limit layout options because of their wide clearance demands. They are harder to accommodate in modern or mobile home installations.
Double wall systems often include components like:
- Adjustable elbows for angled configurations
- Telescoping lengths for vertical alignment
- Snap-lock fittings for easier assembly
Efficiency and Heat Loss Considerations
Double wall pipes reduce heat loss through the venting system. This keeps more energy inside the stove and chimney, supporting consistent combustion and reducing wood usage.
Single wall pipes emit heat into the room but lose energy before exhaust reaches the chimney. This can reduce overall heating efficiency, especially in cold weather.
The thermal consistency of double wall pipes supports cleaner burns and lower emissions. For users seeking long-term efficiency, they are the more effective choice.
Cost Comparison: Single Wall vs Double Wall Stove Pipes
Single wall pipes cost less upfront. A complete system using them can be 30% to 50% cheaper than one with double wall components.
Double wall pipes require a higher initial investment but reduce costs in other areas like shielding and fuel use. In tight spaces, they may prevent expensive remodeling.
Use case matters:
- Use single wall in open, ventilated areas with clearance
- Use double wall in residential or space-constrained environments
When Single Wall Stove Pipe Is the Right Choice
Single wall pipes are suitable in large, open areas where clearance is easy to maintain. Examples include barns, garages, or workshops.
They are ideal when maximum radiant heat is desired from the pipe itself, supplementing stove output in well-ventilated rooms.
They are also practical in short, vertical installations with no nearby combustibles. For example, setups using small wood stoves in rural or utility buildings.
When Double Wall Stove Pipe Is the Safer Option
Double wall stove pipes are recommended for small rooms or confined layouts. Their low clearance rating improves safety and compliance.
They are also preferred in cold climates, where retaining heat within the flue is essential. They reduce creosote risk and improve stove draft.
Use them in:
- Living rooms, basements, or finished interiors
- Mobile homes or manufactured structures
- Installations with cast iron wood stoves or high-output units
Common Installation Mistakes to Avoid
- Do not place single wall pipes too close to walls or ceilings. Maintain clearance as specified.
- Avoid mixing pipe brands or types, which can cause leaks and misalignment. Always match components.
- Improper slope in horizontal pipe runs disrupts draft. Maintain a rise of at least one-quarter inch per foot.
- Secure all joints with proper connectors. Loose fittings reduce performance and increase safety risks.
How to Choose the Right Stove Pipe for Your Setup
Assess your space: measure stove placement, wall distance, and ceiling height. Determine which clearance standards apply.
Review climate and usage: in cold regions or for daily use, double wall systems perform more reliably.
Confirm code requirements from your local authority and your stove’s manual. Installations in mobile or modern homes often require double wall pipes.
