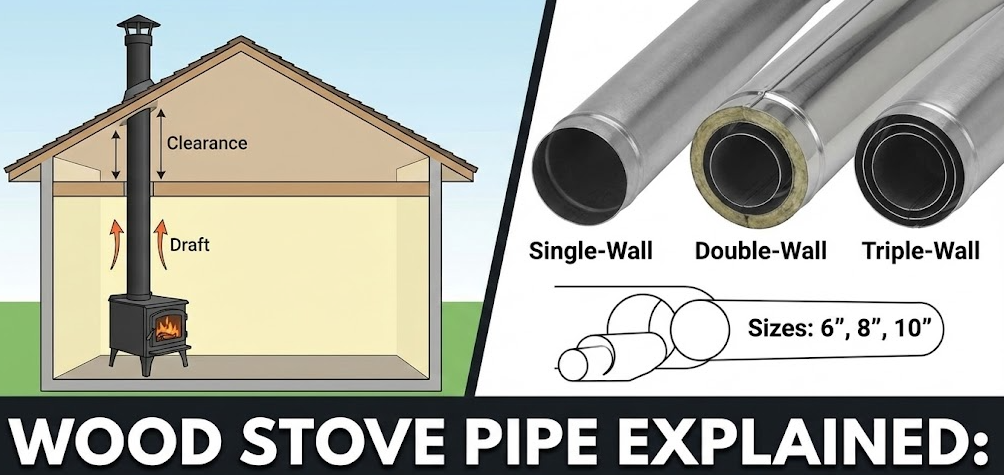

Wood Stove Pipe Explained: Types, Sizes, and Usage
Wood stove pipes are essential components in solid-fuel heating systems. When selected and installed correctly, they provide safe and efficient ventilation for wood-burning stoves. However, improper sizing, incorrect pipe type, or unsafe installation can lead to dangerous conditions, including smoke leakage and chimney fires. This guide addresses the most important aspects of stove pipes, so homeowners and professionals can make informed, compliant choices.
What Is a Wood Stove Pipe and Why It Matters?
A wood stove pipe is a metal duct that connects a wood-burning stove to the chimney system. It serves as a conduit for exhaust gases, including smoke and creosote-laden vapors, directing them out of the living space. Unlike chimney pipes, stove pipes are not rated for exposure beyond the interior space.
The correct use of a wood stove pipe supports proper draft, which directly affects combustion efficiency. If the pipe is too short, too long, or improperly sealed, it can cause backdraft, excessive creosote buildup, or poor heat output. Pipe performance influences fuel usage, air quality, and fire safety.
Every stove pipe must comply with local building codes and manufacturer specifications. Code-compliant installation reduces the risk of carbon monoxide exposure and house fires. Understanding how stove pipes function within the system helps prevent operational and safety failures.
Wood Stove Pipe vs Chimney Pipe: Key Differences
A stove pipe operates inside the home and connects the stove to the chimney. It is not rated for external use or contact with combustible materials. Chimney pipes, also known as Class A pipes, are designed to vent smoke outside and withstand high temperatures without transferring heat to nearby structures.
Stove pipes are made from thin-gauge steel and are available in single or double-wall pipe configurations. Chimney pipes use multiple layers of stainless steel with an insulation layer to reduce external heat transfer. Installing a stove pipe where a chimney pipe is required violates safety codes.
The two types must not be used interchangeably. Misusing a stove pipe in place of a chimney pipe can result in fire hazards, especially where the pipe passes through walls, ceilings, or attics. A proper setup includes both pipe types, each serving its designated section of the system.
Types of Wood Stove Pipes
Single-Wall Stove Pipe
A single-wall stove pipe is constructed from a single layer of steel, typically 24 to 22 gauge. It is the most economical option and suitable for short, straight runs where sufficient clearance from combustibles can be maintained. It transfers more heat into the room but also loses heat faster, which can increase creosote buildup.
This type must maintain a minimum clearance of 18 inches from combustible materials unless local codes specify otherwise. It should not penetrate walls or ceilings and must transition to a chimney pipe before exiting the room. Joints must be secured with screws and properly sealed to prevent leaks.
Single-wall pipe is best suited for installations where aesthetics, cost, and simplicity take priority. It requires regular inspection due to its higher susceptibility to rust, corrosion, and temperature fluctuations compared to insulated options.
Double-Wall Stove Pipe
Double-wall stove pipes consist of an inner steel wall and an outer wall with an air gap between them. This configuration retains more heat inside the pipe, improving draft and reducing creosote formation. It also allows for reduced clearance to combustibles, often down to 6 inches, depending on manufacturer specifications.
Double-wall systems are more efficient for longer interior runs and installations with limited space. They also reduce surface temperatures, improving safety and minimizing risk of accidental burns. These pipes are generally more durable and have longer service lives.
They are more expensive than single-wall options but offer higher safety margins and improved performance. Double-wall pipes are often recommended for high-efficiency stoves or systems with longer vertical rises.
Insulated Stove Pipe Systems
Insulated stove pipe systems are designed for extended or exposed sections, such as attics or exterior walls. These systems use multiple layers of stainless steel with ceramic or mineral insulation between them. They are rated for continuous use at high temperatures and comply with Class A chimney standards.
These pipes are necessary where the stove pipe must pass through combustible structures or operate in cold environments. The insulation minimizes heat loss, which improves draft stability and reduces creosote risk. Proper support brackets and fire-stop components are required at all penetration points.
Insulated pipe systems are not optional in these contexts. Using uninsulated pipe through walls or ceilings violates code and presents severe fire risks. These systems must be installed according to tested listings and not altered or substituted.
How to Choose the Right Wood Stove Pipe Size
The correct stove pipe size is determined by the stove's flue collar diameter. Most wood stoves are designed for 6-inch or 8-inch pipe diameters. Using a pipe smaller or larger than the flue collar will disrupt draft and can cause backflow or overheating.
Pipe diameter must remain consistent from the stove to the chimney transition point. Reducing or increasing the size in between causes turbulence and undermines performance. Use only manufacturer-approved adapters if a change is necessary.
Stove pipe length also affects performance. A vertical rise of at least 3 feet is typically required for effective draft. Horizontal runs should not exceed 75 percent of the vertical rise and must slope upward at a minimum of 1/4 inch per foot.
Proper Wood Stove Pipe Installation Basics
Start by aligning the pipe vertically from the stove's flue collar. Use the fewest number of joints possible to minimize leaks. Secure each joint with three sheet metal screws and ensure the crimped end faces down toward the stove to contain condensation and creosote inside the pipe.
Install the stovepipe with the required clearances. Do not allow any part of the pipe to contact walls, ceilings, or furniture. Where the pipe exits the room, transition to an insulated chimney pipe using a tested support box or thimble.
Use high-temperature sealant rated for stove pipe connections to eliminate smoke leaks. Avoid aluminum tape or silicone not rated for direct heat. Ensure all components are UL-listed and compatible with the stove model and fuel type.
Clearance Requirements and Safety Guidelines
Stove pipe clearance is a critical safety factor. Single-wall pipe must maintain 18 inches from all combustible materials. Double-wall configurations may reduce this to 6 inches, but always follow the manufacturer’s guidelines and local building codes.
Do not install stove pipe through walls, ceilings, floors, or attics unless it transitions to a Class A chimney pipe. Penetrating building structures with stove pipe violates fire codes and creates severe safety risks.
Always use approved support brackets and fire-stop spacers at every structural penetration. Maintain access to cleanouts and joints for inspection and maintenance. A properly installed stove pipe ensures both safety and consistent stove performance.
Common Wood Stove Pipe Installation Mistakes
One of the most common errors is running stove pipe through a wall or ceiling without transitioning to a chimney pipe. This creates a significant fire hazard and is not compliant with building codes. All wall and ceiling penetrations must use listed Class A pipe systems.
Another mistake is reversing the pipe direction. The crimped end should always face the stove so creosote drips inside the pipe, not on the outside. Reversed pipe connections cause leakage and accelerate corrosion.
Incorrect pipe size or excessive horizontal runs can reduce draft and lead to smoke spillage. Keep horizontal runs short and sloped, and avoid elbows unless absolutely necessary. Each bend reduces draft efficiency and adds maintenance complexity.
When to Replace or Upgrade a Wood Stove Pipe
Replace stove pipes showing signs of corrosion, holes, or warping. These defects compromise structural integrity and create fire and smoke risks. Discoloration around joints often indicates gas leakage or overheating.
Upgrading to double-wall or insulated systems is recommended when clearance is limited or creosote buildup is a recurring issue. Higher-efficiency stoves benefit from pipe systems that retain heat and reduce draft resistance.
Pipes over ten years old or used in damp environments should be inspected annually for deterioration. Frequent creosote problems often indicate improper sizing or cooling due to low-grade pipe material.
Maintenance and Cleaning of Wood Stove Pipes
Wood stove pipes must be cleaned regularly to remove creosote and soot buildup. Creosote is flammable and can ignite at temperatures as low as 451 degrees Fahrenheit. Neglecting cleaning increases the risk of chimney fires.
Inspect the pipe at least twice per heating season. Use a flashlight to check for internal residue, corrosion, or blockages. Clean using a wire chimney brush sized to the pipe diameter. Avoid makeshift tools that can damage the pipe surface.
Always allow the stove to cool completely before maintenance. Wear appropriate safety gear and use a drop cloth to catch debris. Professional inspection is advised annually, especially in high-use systems or where structural changes have been made.
Wood Stove Pipe Safety Tips for Long-Term Use
Install a carbon monoxide detector in any room with a wood stove. This alerts occupants to harmful gas buildup that is otherwise odorless and invisible. Test the alarm monthly and replace batteries every six months.
Never burn treated wood, painted wood, or non-wood materials in the stove. These can produce toxic gases and accelerate creosote buildup. Use only seasoned, dry hardwoods to minimize emissions and residue.
Ensure all stove pipe components are UL-listed and designed for wood stove applications. Avoid homemade or repurposed parts, which are not rated for safety. Follow all manufacturer specifications and local code requirements throughout the system.
